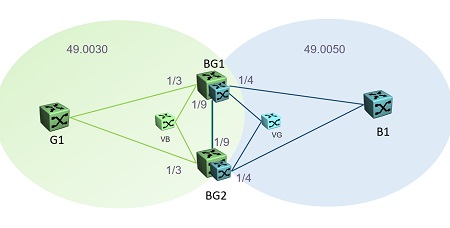

The following figure is an example of the devices connecting to each other in the Multi-area SPB network.
Note
The example applies to VSP 7400 Series only.
The following sections display an example to configure two boundary nodes in the Multi-area SPB network (BG1 and BG2), to enable remote Intermediate-System-to-Intermediate-System (IS-IS), and to configure the layer 2 and layer 3 unicast redistribution.
Note
You must first configure basic SPBM and IS-IS infrastructure. For more information, see SPBM Configuration Examples.
enable
configure terminal
router isis remote
manual-area 49.0050
spbm 1 nick-name 1.21.15
exit
router isis remote enable
show isis area-vnode
=================================================================================================
ISIS SPBM Multi-Area VNode Info
=================================================================================================
VNODE VNODE VNODE REPRESENTED REPRESENTED VNODE
SYSTEM-ID NICK-NAME HOST-NAME AREA-ADDRESS AREA USED-IN-AREA
-------------------------------------------------------------------------------------------------
9200.30ff.fff0 9.00.30 vn-30 49.0030 HOME REMOTE
9200.50ff.fff0 9.00.50 vn-50 49.0050 REMOTE HOME
-------------------------------------------------------------------------------------------------
show isis remote
======================================================================================
ISIS Remote Area Info
======================================================================================
AdminState : enabled
System ID : d887.66f6.e486
Num of Interfaces : 0
Num of Area Addresses : 1
Dynamically Learned Area :
Multi-Area OperState : disabled
interface gigabitEthernet 1/4,1/9
isis remote
isis remote spbm 1
isis remote enable
exit
show isis adjacencies
====================================================================================================================
ISIS Adjacencies
====================================================================================================================
INTERFACE L STATE UPTIME PRI HOLDTIME SYSID HOST-NAME STATUS AREA AREA-NAME
--------------------------------------------------------------------------------------------------------------------
Port1/3 1 UP 20:33:27 127 19 b0ad.aa4d.b884 2118-50 ACTIVE HOME area-9.00.30
PortVirtual 1 UP 20:33:27 127 0 9200.50ff.fff0 area-9.00.50 ACTIVE HOME area-9.00.30
Port1/9 1 UP 00:01:16 127 27 d884.66f6.e484 BN2116 ACTIVE HOME area-9.00.30
Port1/4 1 UP 20:33:27 127 20 b0ad.aa40.1484 2119-50 ACTIVE REMOTE area-9.00.50
PortVirtual 1 UP 20:33:27 127 0 9200.30ff.fff0 area-9.00.30 ACTIVE REMOTE area-9.00.50
Port1/9 1 UP 00:01:00 127 21 d884.66f6.e486 BN2116 ACTIVE REMOTE area-9.00.50
--------------------------------------------------------------------------------------------------------------------
Home: 3 out of 3 interfaces have formed an adjacency
Remote: 3 out of 3 interfaces have formed an adjacency
--------------------------------------------------------------------------------------------------------------------
router isis
multi-area l2 redistribute i-sid permit-all
exit
isis multi-area l2 apply redistribute i-sid
show isis multi-area l2 redistribute i-sid
========================================================================================
MULTI AREA L2 ISID REDIST POLICY
========================================================================================
Permit Except List Name
----------------------------------------------------------------------------------------
permit-all -
----------------------------------------------------------------------------------------
router isis
multi-area ip redistribute unicast
exit
isis multi-area ip apply redistribute unicast
show isis multi-area ip redistribute unicast
========================================================================================
ISIS Multiarea Redistribute List for ip unicast - GlobalRouter
========================================================================================
DIRECTION ENABLE RPOLICY
----------------------------------------------------------------------------------------
home-to-remote TRUE
remote-to-home TRUE
----------------------------------------------------------------------------------------
enable
configure terminal
router isis remote
manual-area 49.0050
spbm 1 nick-name 1.21.16
exit
router isis remote enable
show isis area-vnode
=================================================================================================
ISIS SPBM Multi-Area VNode Info
=================================================================================================
VNODE VNODE VNODE REPRESENTED REPRESENTED VNODE
SYSTEM-ID NICK-NAME HOST-NAME AREA-ADDRESS AREA USED-IN-AREA
-------------------------------------------------------------------------------------------------
9200.02ff.fff0 0.00.10 vn-area-0.00.10 10.0010 HOME REMOTE
9200.01ff.fff0 0.00.20 vn-area-0.00.20 20.0020 REMOTE HOME
-------------------------------------------------------------------------------------------------
show isis remote
=========================================================================================
ISIS Remote Area Info
=========================================================================================
AdminState : enabled
System ID : d884.66f6.e486
Num of Interfaces : 0
Num of Area Addresses : 1
Dynamically Learned Area :
Multi-Area OperState : disabled
interface gigabitEthernet 1/4,1/9
isis remote
isis remote spbm 1
isis remote enable
exit
show isis adjacencies
====================================================================================================================
ISIS Adjacencies
====================================================================================================================
INTERFACE L STATE UPTIME PRI HOLDTIME SYSID HOST-NAME STATUS AREA AREA-NAME
--------------------------------------------------------------------------------------------------------------------
Port1/3 1 UP 20:33:27 127 19 b0ad.aa4d.b884 2118-50 ACTIVE HOME area-9.00.30
PortVirtual 1 UP 20:33:27 127 0 9200.50ff.fff0 area-9.00.50 ACTIVE HOME area-9.00.30
Port1/9 1 UP 00:01:16 127 27 d887.66f6.e484 BN2117 ACTIVE HOME area-9.00.30
Port1/4 1 UP 20:33:27 127 20 b0ad.aa40.1484 2119-50 ACTIVE REMOTE area-9.00.50
PortVirtual 1 UP 20:33:27 127 0 9200.30ff.fff0 area-9.00.30 ACTIVE REMOTE area-9.00.50
Port1/9 1 UP 00:01:00 127 21 d887.66f6.e486 BN2117 ACTIVE REMOTE area-9.00.50
--------------------------------------------------------------------------------------------------------------------
Home: 3 out of 3 interfaces have formed an adjacency
Remote: 3 out of 3 interfaces have formed an adjacency
--------------------------------------------------------------------------------------------------------------------
router isis
multi-area l2 redistribute i-sid permit-all
exit
isis multi-area l2 apply redistribute i-sid
show isis multi-area l2 redistribute i-sid
======================================================================================
MULTI AREA L2 ISID REDIST POLICY
======================================================================================
Permit Except List Name
--------------------------------------------------------------------------------------
permit-all -
--------------------------------------------------------------------------------------
multi-area ip redistribute unicast
exit
isis multi-area ip apply redistribute unicast
show isis multi-area ip redistribute unicast
======================================================================================
ISIS Multiarea Redistribute List for ip unicast - GlobalRouter
======================================================================================
DIRECTION ENABLE RPOLICY
--------------------------------------------------------------------------------------
home-to-remote TRUE
remote-to-home TRUE
--------------------------------------------------------------------------------------
